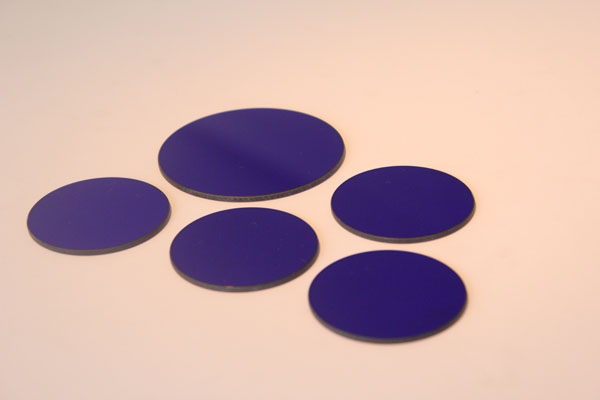

Cyanine glass
1-1. Characteristics
| Type | Thickness(mm) | A[2856k] | D65 | Chemical Stability | ND | α×10-7(℃) | Tg(℃) | Ts(℃) | S | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| x | y | Y | x | y | Y | DA | DW | |||||||
| QB1 | 2 | 0.354 | 0.379 | 44.8 | 0.235 | 0.258 | 49.0 | 1 | 3 | 1.520 | 93 | 477 | 550 | 2.51 |
| QB2 | 2 | 0.322 | 0.334 | 28.8 | 0.210 | 0.206 | 32.6 | 1 | 3 | 1.520 | 93 | 477 | 550 | 2.51 |
| QB3 | 2 | 0.159 | 0.042 | 0.8 | 0.156 | 0.028 | 1.8 | 1 | 3 | 1.520 | 91 | 525 | 577 | 2.51 |
| QB4 | 2 | 0.143 | 0.101 | 3.0 | 0.145 | 0.063 | 5.8 | 1 | 3 | 1.582 | 81 | 483 | 549 | 3.25 |
| QB5 | 2 | 0.143 | 0.106 | 2.8 | 0.146 | 0.065 | 5.2 | 1 | 2 | 1.520 | 93 | 477 | 550 | 2.52 |
1-2. Technical Indexes
| Type | Thickness(mm) | 400(nm) | 420(nm) | 450(nm) | 540(nm) | 600(nm) | 640(nm) | 680(nm) | 700(nm) |
|---|---|---|---|---|---|---|---|---|---|
| QB1 | 2 | ≥84.0 | 44.0~50.0 | 21.0~27.0 | 34.0~42.0 | ||||
| QB2 | 2 | ≥84.0 | 22.0~36.0 | 10.0~21.0 | |||||
| QB3 | 2 | ≥40.0 | ≤0.4 | ≤3.0 | |||||
| QB4 | 2 | ≥66.7 | ≤1.2 | ≤19.7 | |||||
| QB5 | 2 | ≥58.0 | ≤5.0 | ≤2.0 |
1-3. Class Of Bubble、Stripe、Stress
| Type | Bubble | Stripe | Stress |
|---|---|---|---|
| QB1 | C-B | 3C | 3 |
| QB2 | C-B | 3C | 3 |
| QB3 | C-B | 4 | 3 |
| QB4 | C-B | 4 | 3 |
| QB5 | C-B | 4 | 3 |

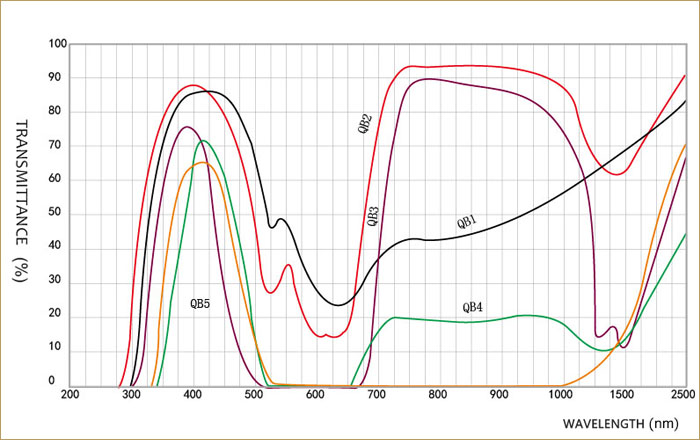

1-4. Transmittance
2-1. characteristics
| Type | Thickness(mm) | A[2856k] | D65 | Chemical Stability | ND | α×10-7(℃) | Tg(℃) | Ts(℃) | S | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| x | y | Y | x | y | Y | DA | DW | |||||||
| QB9 | 2 | 0.187 | 0.391 | 14.8 | 0.156 | 0.256 | 20.3 | 1 | 2 | 1.524 | 89 | 460 | 532 | 2.56 |
| QB10 | 2 | 0.409 | 0.417 | 74.4 | 0.283 | 0.324 | 76.6 | 1 | 2 | 1.529 | 84 | 540 | 606 | 2.63 |
| QB11 | 2 | 0.328 | 0.412 | 52.0 | 0.226 | 0.290 | 59.1 | 1 | 2 | 1.514 | 93 | 477 | 550 | 2.57 |
| QB12 | 2 | 0.269 | 0.406 | 36.2 | 0.194 | 0.271 | 44.2 | 1 | 2 | 1.517 | 91 | 506 | 572 | 2.59 |
| QB13 | 2 | 0.189 | 0.377 | 17.3 | 0.157 | 0.242 | 23.7 | 1 | 2 | 1.522 | 90 | 490 | 555 | 2.61 |
2-2. Technical Indexes
| Type | Thickness(mm) | 400(nm) | 480(nm) | 640(nm) | 680(nm) | 700(nm) | 1000(nm) |
|---|---|---|---|---|---|---|---|
| QB9 | 2 | ≥10.0 | ≥36.5 | ≤1.0 | |||
| QB10 | 2 | ≥76.0 | 23.0~31.0 | ≤5.0 | |||
| QB11 | 2 | ≥80.0 | ≥83.8 | 5.5~11.6 | |||
| QB12 | 2 | ≥63.5 | ≥76.4 | ≤0.7 | |||
| QB13 | 2 | ≥20.0 | ≥51.5 | ≤0.2 |
2-3. Class Of Bubble、Stripe、Stress
| Type | Bubble | Stripe | Stress |
|---|---|---|---|
| QB9 | C-B | 4 | 3 |
| QB10 | D | 3C | 3 |
| QB11 | C-B | 3C | 3 |
| QB12 | C-B | 3C | 3 |
| QB13 | C-B | 3C | 3 |

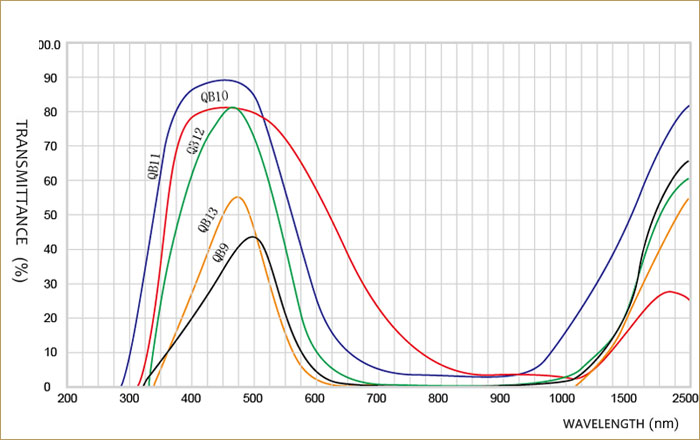

2-4. Transmittance
3-1. characteristics
| Type | Thickness(mm) | A[2856k] | D65 | Chemical Stability | ND | α×10-7(℃) | Tg(℃) | Ts(℃) | S | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| x | y | Y | x | y | Y | DA | DW | |||||||
| QB16 | 2 | 0.430 | 0.411 | 82.4 | 0.300 | 0.327 | 84.7 | 6 | 5 | 1.520 | 2.64 | |||
| QB17 | 2 | 0.424 | 0.417 | 71.4 | 0.299 | 0.334 | 74.0 | 6 | 5 | 1.515 | 2.60 | |||
| QB18 | 2 | 0.400 | 0.413 | 75.2 | 0.274 | 0.315 | 78.3 | 1 | 3 | 1.518 | 90 | 490 | 555 | 2.50 |
| *QB19 | 2 | 0.247 | 0.250 | 12.2 | 0.175 | 0.137 | 15.6 | 1 | 3 | 1.477 | 93 | 428 | 520 | 2.25 |
| QB21 | 2 | 0.345 | 0.439 | 62.1 | 0.244 | 0.326 | 68.8 | 6 | 5 | 1.535 | 100 | 421 | 463 | 2.86 |
3-2. Technical Indexes
| Type | Thickness(mm) | 400(nm) | 420(nm) | 450(nm) | 500(nm) | 540(nm) | 650(nm) | 700(nm) | 800(nm) | 1000(nm) |
|---|---|---|---|---|---|---|---|---|---|---|
| QB16 | 2 | ≥88.3 | ≥87.9 | 64.9～72.8 | 33.3～48.1 | |||||
| QB17 | 2 | ≥69.7 | 27.7～44.0 | ≤10.1 | ||||||
| QB18 | 2 | ≥88.5 | 80.0～87.7 | 25.3～59.3 | ||||||
| *QB19 | 2 | ≥70.0 | 560≥10.0 | 620≤3.0 | ≤13.0 | |||||
| QB21 | 2 | 360≥50.0 | ≥83.0 | 680≤4.5 |
3-3. Class Of Bubble、Stripe、Stress
| Type | Bubble | Stripe | Stress |
|---|---|---|---|
| QB16 | D | 3C | 3 |
| QB17 | D | 3C | 3 |
| QB18 | D | 3C | 3 |
| *QB19 | D-C | 4 | 3 |
| QB21 | D | 3C | 4 |

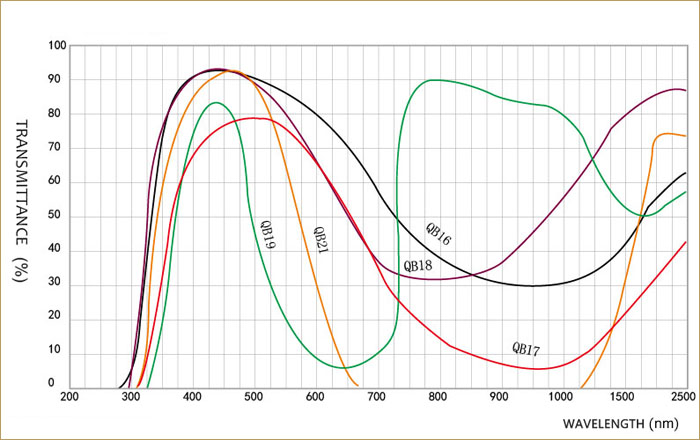

3-4. Transmittance
4-1. characteristics
| Type | Thickness(mm) | A[2856k] | D65 | Chemical Stability | ND | α×10-7(℃) | Tg(℃) | Ts(℃) | S | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| x | y | Y | x | y | Y | DA | DW | |||||||
| QB23 | 2 | 0.207 | 0.385 | 20.8 | 0.165 | 0.248 | 27.7 | 1 | 2 | 1.517 | 93 | 477 | 550 | 2.56 |
| QB24 | 2 | 0.149 | 0.035 | 0.7 | 0.153 | 0.028 | 1.9 | 4 | 3 | 1.513 | 93 | 477 | 550 | 2.56 |
| QB26 | 2 | 0.318 | 0.470 | 42.4 | 0.233 | 0.360 | 48.5 | 6 | 5 | 1.536 | 74 | 549 | 624 | 2.82 |
| QB29 | 2 | 0.151 | 0.033 | 0.7 | 0.154 | 0.026 | 1.8 | 1 | 2 | 1.517 | 93 | 477 | 550 | 2.56 |
4-2. Technical Indexes
| Type | Thickness(mm) | 320(nm) | 334(nm) | 350(nm) | 405(nm) | 480(nm) | 600(nm) | 633(nm) | 694(nm) | 750(nm) |
|---|---|---|---|---|---|---|---|---|---|---|
| QB23 | 2 | ≤4.0 | ≥60.3 | ≤0.1 | ||||||
| QB24 | 2 | ≤14.7 | ≥68.0 | ≤19.4 | ≤0.1 | ≤0.9 | ||||
| QB26 | 2 | ≥10.6 | 510≥70.9 | 633≤5.7 | ≤5.7 | ≤0.1 | ||||
| QB29 | 2 | ≤23.0 | 380≥83.0 | ≤22.0 | ≤0.1 | ≤14.7 |
4-3. Class Of Bubble、Stripe、Stress
| Type | Bubble | Stripe | Stress |
|---|---|---|---|
| QB23 | C-B | 3C | 3 |
| QB24 | C-B | 3C | 3 |
| QB26 | D-C | 3C | 4 |
| QB29 | C-B | 3C | 3 |

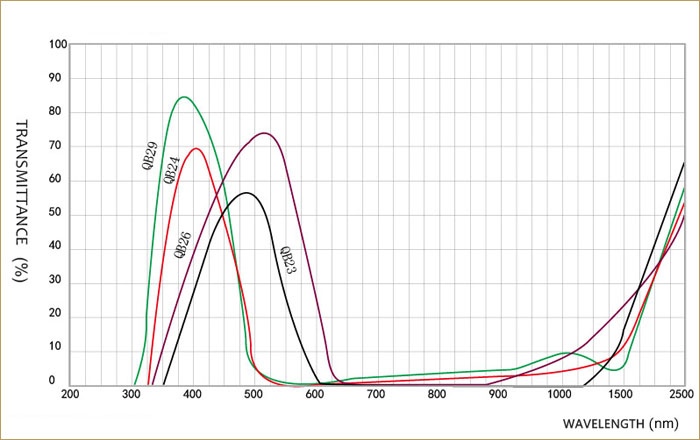

4-4. Transmittance
5-1. characteristics
| Type | Thickness(mm) | A[2856k] | D65 | Chemical Stability | ND | α×10-7(℃) | Tg(℃) | Ts(℃) | S | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| x | y | Y | x | y | Y | DA | DW | |||||||
| QB38 | 1 | 0.471 | 0.418 | 80 | 6 | 5 | 1.532 | 98 | 452 | 2.76 | ||||
| QB39 | 1 | 0.364 | 0.431 | 66 | 6 | 5 | 1.512 | 97 | 322 | 2.74 | ||||
5-2. Technical Indexes
| Type | Thickness(mm) | 350 (nm) |
405 (nm) |
514 (nm) |
633 (nm) |
694 (nm) |
1060 (nm) |
|---|---|---|---|---|---|---|---|
| QB38 | 1 | ≥73.6 | ≥85.6 | ≥87.4 | ≤61.6 | ≤29.4 | ≤5.5 |
| QB39 | 1 | ≥54.6 | ≥77.4 | ≥84.6 | ≤27.3 | ≤2.7 | ≤0.091 |
5-3. Class Of Bubble、Stripe、Stress
| Type | Bubble | Stripe | Stress |
|---|---|---|---|
| QB38 | C-B | 3C | 3 |
| QB39 | C-B | 3C | 3 |

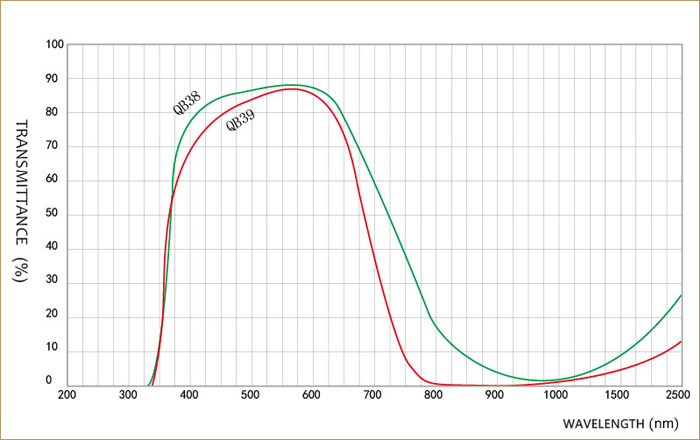

5-4. Transmittance
