QB38
1. characteristics
| Type | Thickness(mm) | A[2856k] | D65 | Chemical Stability | ND | α×10-7(℃) | Tg(℃) | Ts(℃) | S | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| x | y | Y | x | y | Y | DA | DW | |||||||
| QB38 | 1 | 0.471 | 0.418 | 80 | 6 | 5 | 1.532 | 98 | 452 | 2.76 | ||||
2. Technical Indexes
| Type | Thickness(mm) | 350 (nm) |
405 (nm) |
514 (nm) |
633 (nm) |
694 (nm) |
1060 (nm) |
|---|---|---|---|---|---|---|---|
| QB38 | 1 | ≥73.6 | ≥85.6 | ≥87.4 | ≤61.6 | ≤29.4 | ≤5.5 |
3. Class Of Bubble、Stripe、Stress
| Type | Bubble | Stripe | Stress |
|---|---|---|---|
| QB38 | C-B | 3C | 3 |

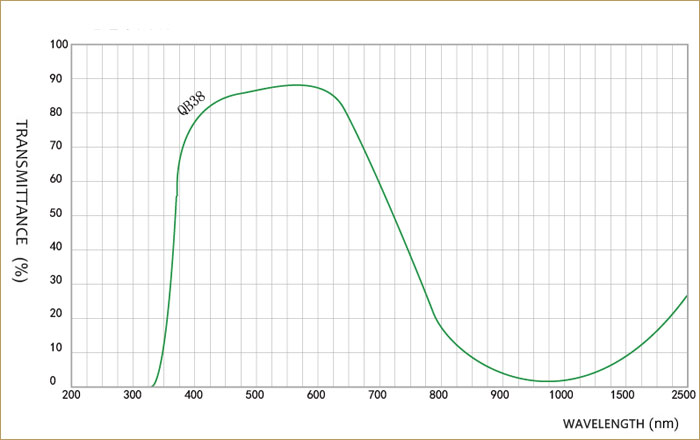

5-4. Transmittance
