QB24

1. characteristics

Type Thickness(mm) A[2856k] D65 Chemical Stability ND α×10-7(℃) Tg(℃) Ts(℃) S
x y Y x y Y DA DW
QB24 2 0.149 0.035 0.7 0.153 0.028 1.9 4 3 1.513 93 477 550 2.56



2. Technical Indexes

Type Thickness(mm) 320(nm) 334(nm) 350(nm) 405(nm) 480(nm) 600(nm) 633(nm) 694(nm) 750(nm)
QB24 2   ≤14.7   ≥68.0 ≤19.4 ≤0.1     ≤0.9



3. Class Of Bubble、Stripe、Stress

Type Bubble Stripe Stress
QB24 C-B 3C 3

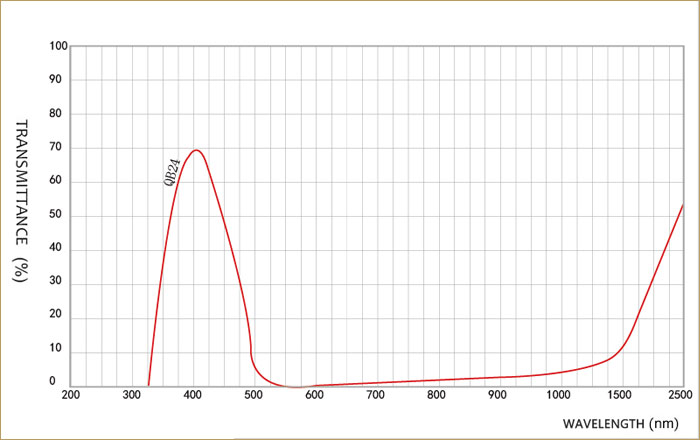

4. Transmittance
