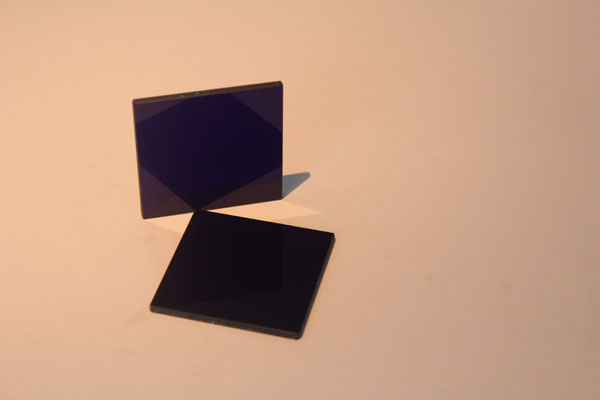

Violet glass
1. Characteristics
| Type | Thickness (mm) |
A[2856k] | D65 | Chemical Stability | ND | α×10-7 (℃) |
Tg (℃) |
Ts (℃) |
S | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| x | y | Y | x | y | Y | DA | DW | |||||||
| ZB1 | 2 | 0.519 | 0.018 | 0.2 | 0.160 | 0.016 | 0.6 | 1 | 3 | 1.524 | 89 | 519 | 589 | 2.53 |
| ZB2 | 2 | 0.158 | 0.020 | 0.2 | 0.160 | 0.017 | 0.7 | 1 | 2 | 1.495 | 58 | 551 | 655 | 2.40 |
| ZB3 | 2 | 0.165 | 0.011 | 0.1 | 0.166 | 0.010 | 0.2 | 1 | 3 | 1.495 | 57 | 538 | 636 | 2.40 |
2. Technical Indexes
| 牌 号 | 厚度 (mm) |
300 (nm) |
360 (nm) |
400 (nm) |
480 (nm) |
700 (nm)) |
710 (nm) |
720 (nm) |
800 (nm) |
|---|---|---|---|---|---|---|---|---|---|
| ZB1 | 2 | ≥70.0 | ≤6.0 | ≤4.0 | |||||
| ZB2 | 2 | ≥31.0 | ≥78.2 | ≤3.7 | ≤9.2 | ≥80.4 | |||
| ZB3 | 2 | ≥18.0 | ≥78.2 | ≤0.2 | ≤10.0 | ≥80.4 |
3. Class Of Bubble、Stripe、Stress
| Type | Bubble | Stripe | Stress |
|---|---|---|---|
| ZB1 | C-B | 4 | 3 |
| ZB2 | C-B | 4 | 3 |
| ZB3 | C-B | 4 | 3 |

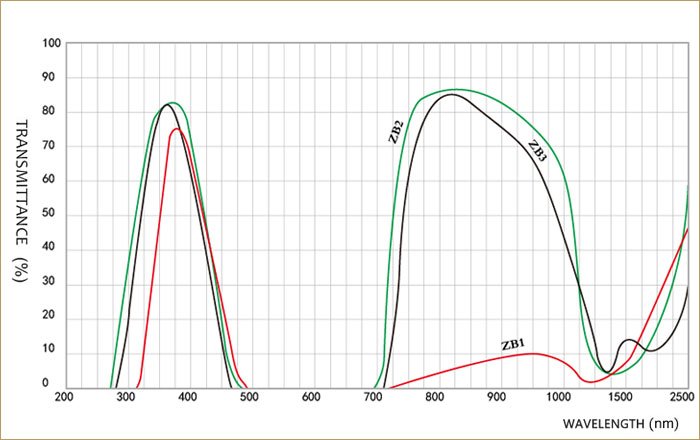

4. Transmittance
