ZWB3
1. Characteristics
| Type | Thickness (mm) |
A[2856k] | D65 | Chemical Stability | ND | α×10-7 (℃) |
Tg (℃) |
Ts (℃) |
S | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| x | y | Y | x | y | Y | DA | DW | |||||||
| ZWB3 | 2 | 0.711 | 0.256 | 0.3 | 0.538 | 0.176 | 0.1 | 2 | 3 | 1.526 | 85 | 527 | 616 | 2.63 |
2. Technical Indexes
| Type | Thickness (mm) |
254 (nm) |
280 (nm) |
313 (nm) |
334 (nm) |
365 (nm) |
405 (nm) |
700 (nm) |
|---|---|---|---|---|---|---|---|---|
| ZWB3 | 2 | 34.0 | ≥86.0 | ≤28.8 | ≤64.6 |
3. Class Of Bubble、Stripe、Stress
| Type | Bubble | Stripe | Stress |
|---|---|---|---|
| ZWB3 | C | 4 | 4 |

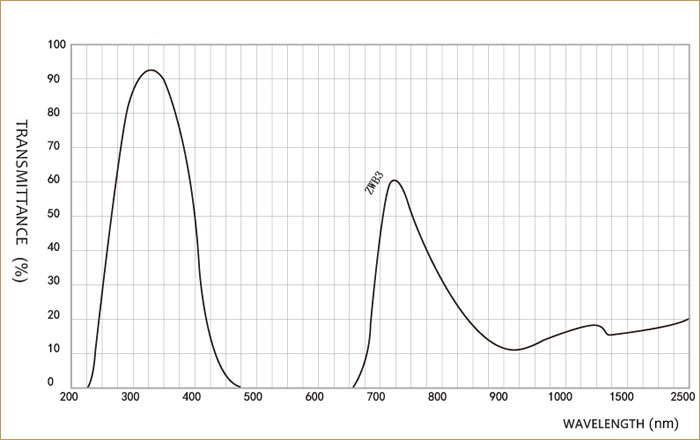

4. Transmittance
