HB6
1. Characteristics
| Type | Thickness (mm) |
A[2856k] | D65 | Chemical Stability | ND | α×10-7 (℃) |
Tg (℃) |
Ts (℃) |
S | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| x | y | Y | x | y | Y | DA | DW | |||||||
| HB6 | 2 | 0.569 | 0.365 | 1.4 | 0.403 | 0.251 | 1.0 | 3 | 3 | |||||
2. Technical Indexes
| Type | Thickness (mm) |
590 (nm) |
640 (nm) |
650 (nm) |
680 (nm) |
700 (nm) |
|---|---|---|---|---|---|---|
| HB6 | 2 | 0.8-2.0 | 1.1-2.5 | 2.1~4.8 |
3. Class Of Bubble、Stripe、Stress
| Type | Bubble | Stripe | Stress |
|---|---|---|---|
| HB6 | C | 4 | 3 |

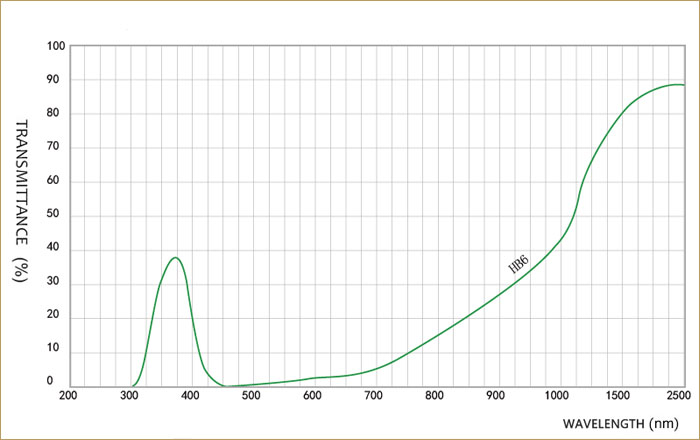

4. Transmittance
