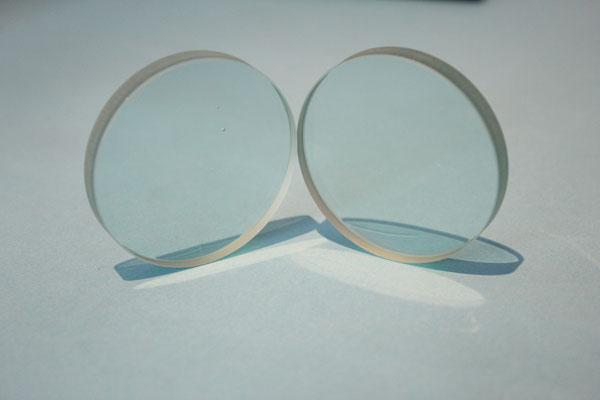

Insulating glass
1. characteristics
| Type | Thickness (mm) |
A[2856k] | D65 | Chemical Stability | ND | α×10-7 (℃) |
Tg (℃) |
Ts (℃) |
S | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| x | y | Y | x | y | Y | DA | DW | |||||||
| GRB1 | 3 | 0.439 | 0.412 | 91.7 | 0.307 | 0.330 | 90.8 | 3 | 2 | 1.510 | 59 | 587 | 656 | 2.54 |
| GRB3 | 2 | 0.440 | 0.413 | 86.5 | 0.311 | 0.334 | 87.4 | 2 | 3 | 1.512 | 59 | 587 | 656 | 2.55 |
2. Technical Indexes
| Type | Thickness (mm) |
420 (nm) |
500 (nm) |
600 (nm) |
700 (nm) |
800 (nm) |
900 (nm) |
1000 (nm) |
1060 (nm) |
2200 (nm) |
|---|---|---|---|---|---|---|---|---|---|---|
| GRB1 | 3 | ≥85.0 | 45.0~70.0 | ≤4.0 | ||||||
| GRB3 | 2 | 365≥81.9 | ≥81.0 | ≥76.4 | ≤50.6 | ≤12.9 | ≤2.8 | ≤0.1 | ≤0.9 |
3. Class Of Bubble、Stripe、Stress
| Type | Bubble | Stripe | Stress |
|---|---|---|---|
| GRB1 | C | 3C | 4 |
| GRB3 | D-C | 3C | 4 |

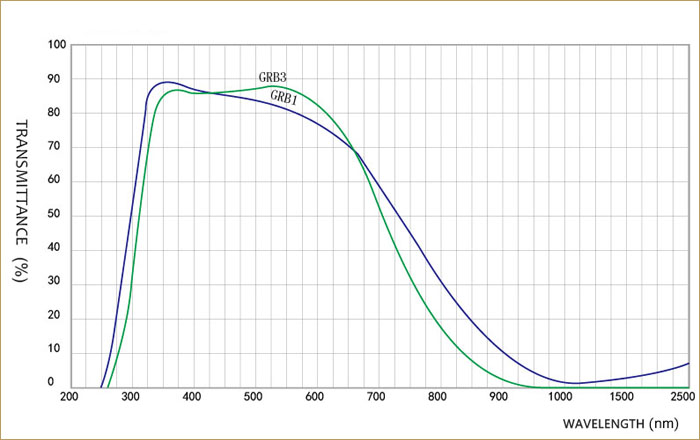

4. Transmittance
