LB16
1. characteristics
| Type | Thickness (mm) |
A[2856k] | D65 | Chemical Stability | ND | α×10-7 (℃) |
Tg (℃) |
Ts (℃) |
S | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| x | y | Y | x | y | Y | DA | DW | |||||||
| LB16 | 2 | 0.484 | 0.476 | 74.0 | 0.405 | 0.483 | 70.2 | 6 | 5 | 1.535 | 100 | 421 | 463 | 2.84 |
2. Technical Indexes
| Type | Thickness (mm) |
450 (nm) |
460 (nm) |
510 (nm) |
520 (nm) |
530 (nm) |
560 (nm) |
600 (nm) |
660 (nm) |
750 (nm) |
|---|---|---|---|---|---|---|---|---|---|---|
| LB16 | 2 | 9.0~16.0 | ≥83.6 | 35.0~42.0 |
3. Class Of Bubble、Stripe、Stress
| Type | Bubble | Stripe | Stress |
|---|---|---|---|
| LB16 | D-C | 3C | 4 |

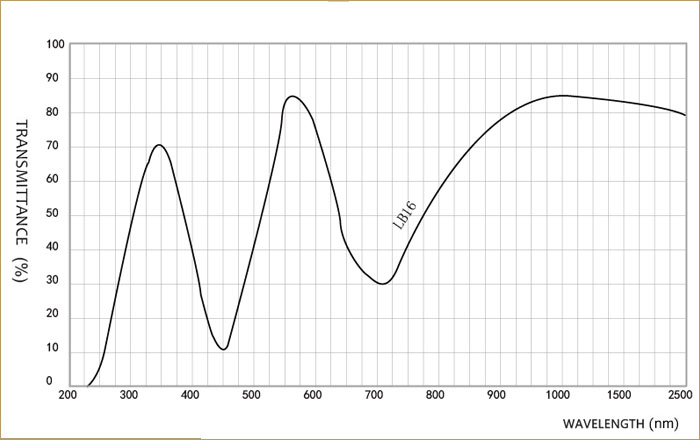

4. Transmittance
