LB8
1. Characteristics
| Type | Thickness (mm) |
A[2856k] | D65 | Chemical Stability | ND | α×10-7 (℃) |
Tg (℃) |
Ts (℃) |
S | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| x | y | Y | x | y | Y | DA | DW | |||||||
| LB8 | 2 | 0.496 | 0.459 | 34.9 | 0.420 | 0.475 | 32.3 | 1 | 2 | 1.523 | 2.52 | |||
2. Technical Indexes
| Type | Thickness (mm) |
400 (nm) |
420 (nm) |
460 (nm) |
545 (nm) |
550 (nm) |
560 (nm) |
620 (nm) |
640 (nm) |
650 (nm) |
660 (nm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LB8 | 2 | ≤1.3 | 30.3~43.9 | 25.2-40.0 |
3. Class Of Bubble、Stripe、Stress
| Type | Bubble | Stripe | Stress |
|---|---|---|---|
| LB8 | C-B | 3C | 3 |

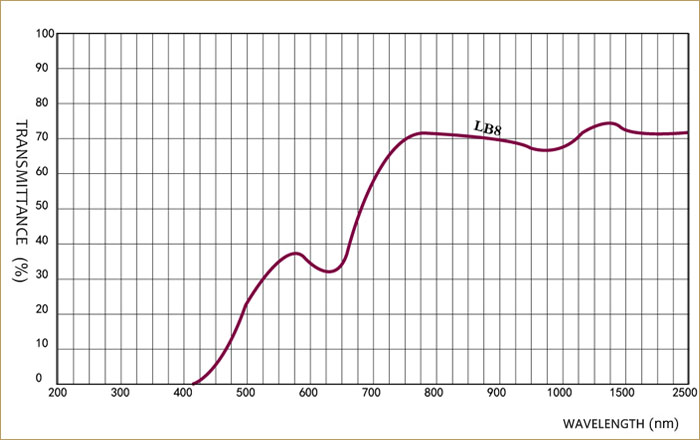

4. Transmittance
