LB10
1. Characteristics
| Type | Thickness (mm) |
A[2856k] | D65 | Chemical Stability | ND | α×10-7 (℃) |
Tg (℃) |
Ts (℃) |
S | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| x | y | Y | x | y | Y | DA | DW | |||||||
| LB10 | 2 | 0.472 | 0.477 | 79.2 | 0.383 | 0.495 | 77.6 | 1 | 3 | 1.547 | 104 | 458 | 526 | 2.85 |
2. Technical Indexes
| Type | Thickness (mm) |
400 (nm) |
420 (nm) |
460 (nm) |
545 (nm) |
550 (nm) |
560 (nm) |
620 (nm) |
640 (nm) |
650 (nm) |
660 (nm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LB10 | 2 | ≤1.0 | ≥72.0 | 50.0~60.0 |
3. Class Of Bubble、Stripe、Stress
| Type | Bubble | Stripe | Stress |
|---|---|---|---|
| LB10 | C-B | 3C | 3 |

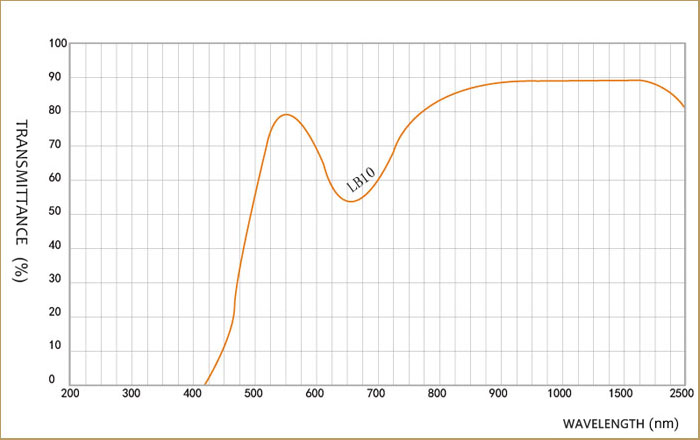

4. Transmittance
