LB1
1. Characteristics
| Type | Thickness (mm) |
A[2856k] | D65 | Chemical Stability | ND | α×10-7 (℃) |
Tg (℃) |
Ts (℃) |
S | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| x | y | Y | x | y | Y | DA | DW | |||||||
| LB1 | 2 | 0.328 | 0.593 | 24.6 | 0.268 | 0.586 | 28.2 | 1 | 3 | 1.524 | 96 | 535 | 599 | 2.52 |
2. Technical Indexes
| Type | Thickness (mm) |
430 (nm) |
450 (nm) |
520 (nm) |
530 (nm) |
650 (nm) |
|---|---|---|---|---|---|---|
| LB1 | 2 | ≤0.4 | ≥41.9 | ≤3.2 |
3. Class Of Bubble、Stripe、Stress
| Type | Bubble | Stripe | Stress |
|---|---|---|---|
| LB1 | C-B | 4 | 3 |

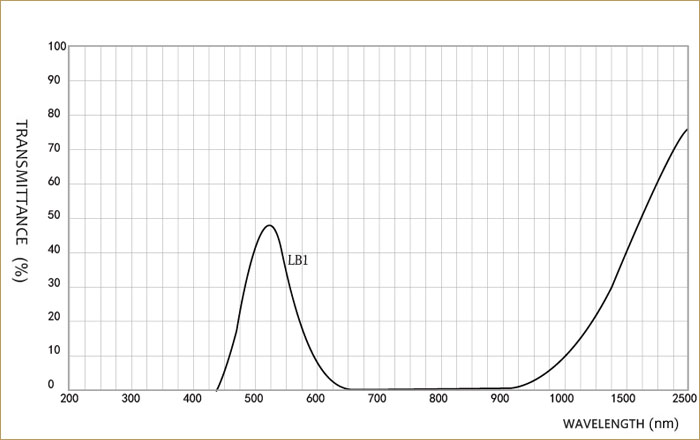

4. Transmittance
