LB4
1. Characteristics
| Type | Thickness (mm) |
A[2856k] | D65 | Chemical Stability | ND | α×10-7 (℃) |
Tg (℃) |
Ts (℃) |
S | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| x | y | Y | x | y | Y | DA | DW | |||||||
| LB4 | 2 | 0.230 | 0.516 | 16.3 | 0.183 | 0.387 | 20.7 | 1 | 1 | 1.523 | 89 | 525 | 598 | 2.52 |
2. Technical Indexes
| Type | Thickness (mm) |
430 (nm) |
450 (nm) |
520 (nm) |
530 (nm) |
650 (nm) |
|---|---|---|---|---|---|---|
| LB4 | 2 | 6.0~15.9 | ≥24.1 | ≤0.2 |
3. Class Of Bubble、Stripe、Stress
| Type | Bubble | Stripe | Stress |
|---|---|---|---|
| LB4 | C-B | 4 | 3 |

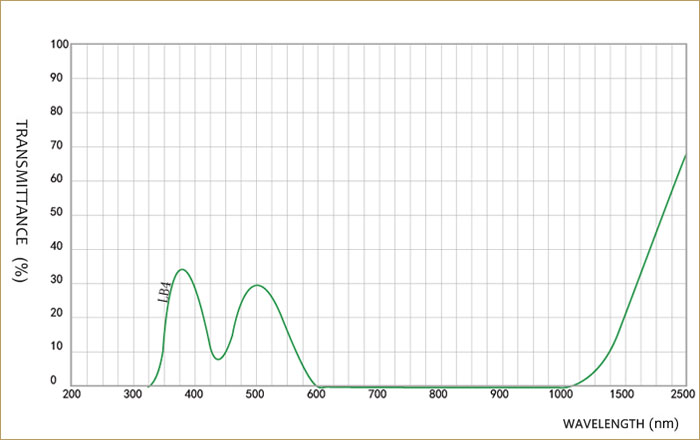

4. Transmittance
