HB610
1. characteristics
| Type | Thickness (mm) |
A[2856k] | D65 | Chemical Stability | ND | α×10-7 (℃) |
Tg (℃) |
Ts (℃) |
S | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| x | y | Y | x | y | Y | DA | DW | |||||||
| HB610 | 2 | 0.695 | 0.305 | 18.4 | 0.690 | 0.310 | 10.7 | 1 | 2 | 1.523 | 103 | 527 | 605 | 2.64 |
2. Technical Indexes
| Type | Thickness (mm) |
λtj (nm) |
λ0 (nm) |
Tλ0 (%) |
K |
|---|---|---|---|---|---|
| HB610 | 2 | 610 ± 10 | 680 | ≥88.7 | ≥1.2 |
3. Class Of Bubble、Stripe、Stress
| Type | Bubble | Stripe | Stress |
|---|---|---|---|
| HB610 | C-B | 3C | 3 |

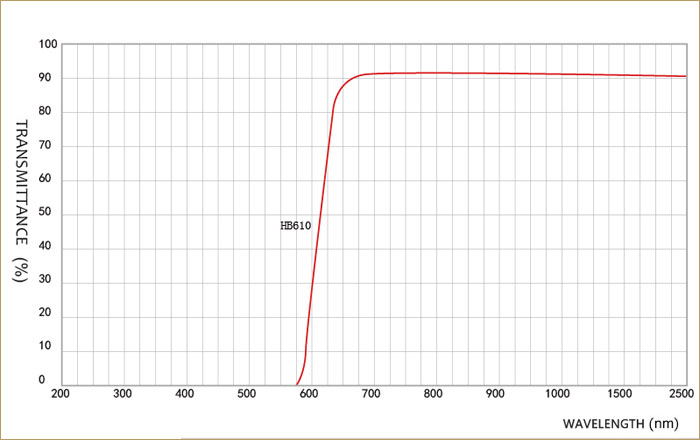

4. Transmittance
