HB650
1. characteristics
| Type | Thickness (mm) |
A[2856k] | D65 | Chemical Stability | ND | α×10-7 (℃) |
Tg (℃) |
Ts (℃) |
S | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| x | y | Y | x | y | Y | DA | DW | |||||||
| HB650 | 2 | 0.728 | 0.272 | 3.2 | 0.728 | 0.272 | 1.5 | 1 | 2 | 1.523 | 103 | 527 | 605 | 2.64 |
2. Technical Indexes
| Type | Thickness (mm) |
λtj (nm) |
λ0 (nm) |
Tλ0 (%) |
K |
|---|---|---|---|---|---|
| HB650 | 2 | 650 ± 10 | 720 | ≥87.5 | ≥1.0 |
3. Class Of Bubble、Stripe、Stress
| Type | Bubble | Stripe | Stress |
|---|---|---|---|
| HB650 | C-B | 3C | 3 |

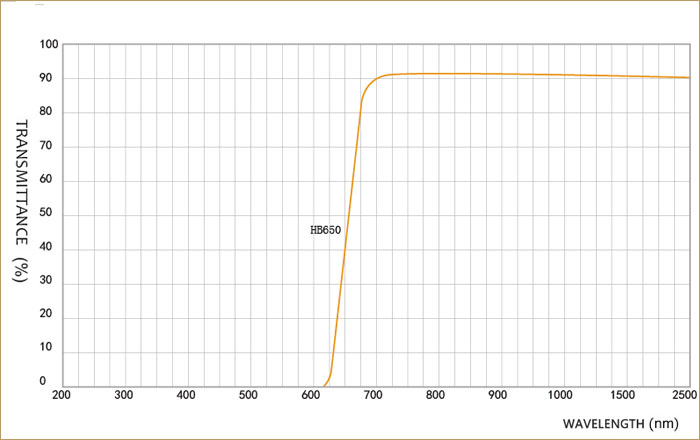

4. Transmittance
